The EX-i SFC3000 flow computer offers multi-stream measurement of gas flow

Offers cost savings by making multi-point measurements

Measurements conforming to AGA, ISO, API standards

The SFC3000 flow computer from Sussex based Ex-i Flow Measurement Ltd may be configured to provide a multi-stream measurement solution for gas flow. Using a SFC3000 to make multiple sample point measurements can offer cost savings by allowing a single emissions analyser to make sequential measurements from many different sample points.

With additional I/O option boards, the number of streams measured by the EX-i SFC3000 flow computer can be increased up to 5. While it is possible to have multiple streams on a single I/O board, fiscal measurements require one stream per board. If more than 5 streams are required these can be spread over more than one flow computer and the data collated together using the supervisor features of the SFC3000.

The optional I/O boards also have output functionality to allow the control of, or information to be passed to, other parts of a system via pulse or status digital outputs and 4-20mA outputs. With the addition of a communication board, data can also be passed to other systems via the communication board ports, such printers or DCS. Data can also be obtained from a gas chromatograph or other source via the serial or ethernet ports.

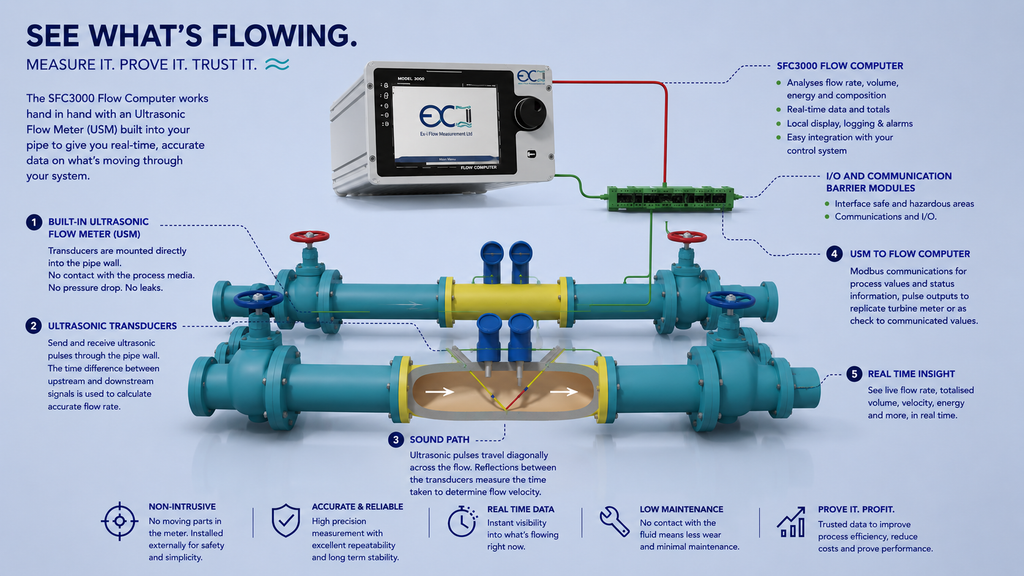

The SFC3000 is a highly versatile liquid hydrocarbon and gas flow measuring device capable of operating in a stand-alone single stream flow measurement system or as part of a highly complex multi-stream system and offers a great deal more than a dedicated flow computer.

SFC3000 flow computer key features:

  • Measurement conforming to AGA, ISO, API standards of: dry and wet natural gas, hydrocarbon liquids, other gases e.g. nitrogen, other liquids e.g. water.
  • Nmi (Nederland’s Measurement Institute) Certificates to: WELMEC 7.2 and 8.8, OIML R117, MID (Measurement Instrumentation Directive) 2014/32/EU
  • Standard Features: standalone flow computing function, flow computing combined with supervisory function, up to 2 G-byte additional memory for Alarm, Audit and Data Logging, optional SD card required.
  • Meter types: pulse generating flow meters, most common ultrasonic flow meters, dp transmitters with orifice or venturi measurements
  • Configurable Display: system diagrams, Trending and graphical displays, Language options, Interfaces to most types of metering equipment and all popular GC’s, Easy Installation and interfacing
  • Supervisory Features, Alarm/Event/Data Logging and Recording, Printer Report Generation, System Diagram Display, Network Communication, Station Controller Functions, Valve Control and Remote Operation.
  • Maintenance Functions: stream summation, pid/sampler functions, flow computer specification.

 For more information on the EX-i SFC3000 flow computer call +44 (0)1243 554920, email [email protected] or visit https://exiflowmeasurement.com/
